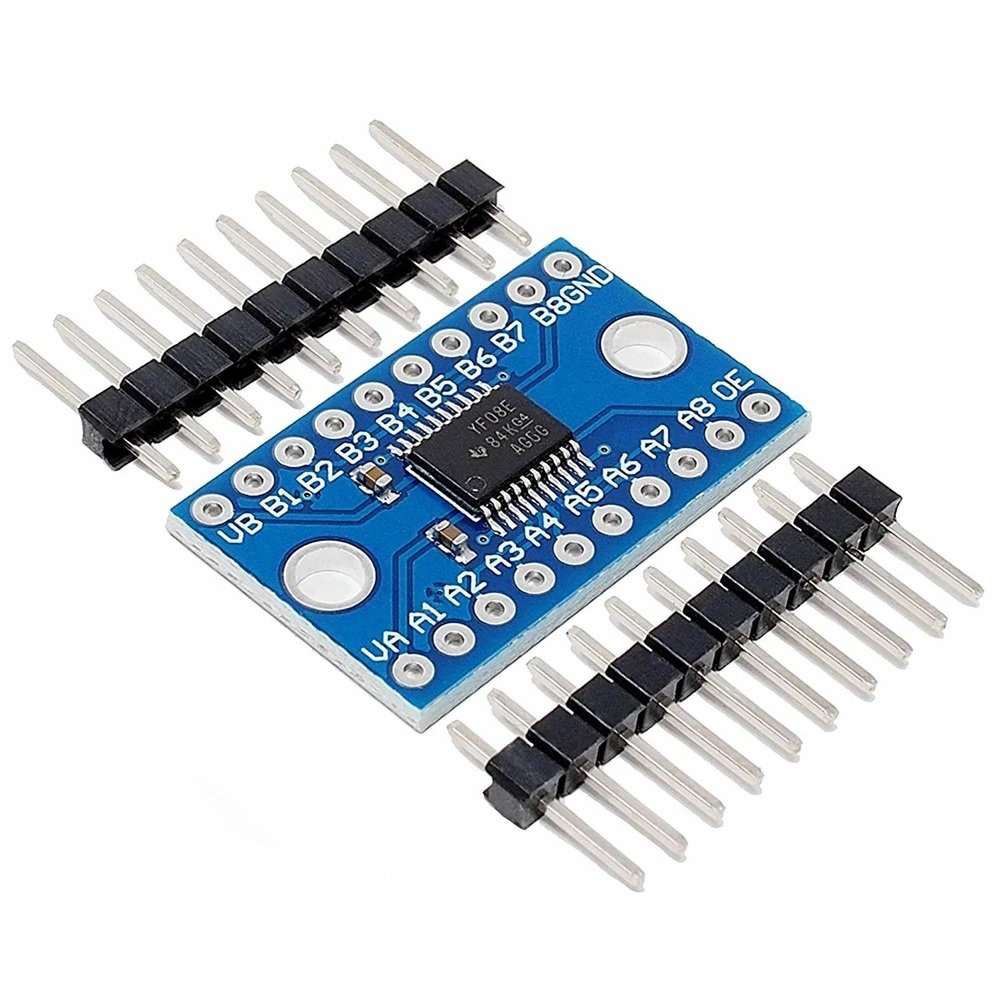

Módulo Convertidor de Nivel Lógico TXS0108E

Descripción

• AEC-Q100 Qualified for Automotive Applications
  • Device Temperature Grade 1: –40°C to 125°C
  • Device HBM ESD Classification Level 2
  • Device CDM ESD Classification Level C6
• No Direction-Control Signal Needed
• Maximum Data Rates
  • 110 Mbps (Push Pull)
  • 1.2 Mbps (Open Drain)
• 1.4 V to 3.6 V on A Port and 1.65 V to 5.5 V on B Port (V_CCA ≤ V_CCB)
• No Power-Supply Sequencing Required – Either V_CCA or V_CCB Can Be Ramped First
• Latch-Up Performance Exceeds 100 mA Per
  JESD 78, Class II
• ESD Protection Exceeds JESD 22 (A Port)
  • 2000 V Human Body Model (A114-B)
  • 1000 V Charged-Device Model (C101)
• IEC 61000-4-2 ESD (B Port)
  • ±8 kV Contact Discharge
  • ±6 kV Air-Gap Discharge

DataSheet
